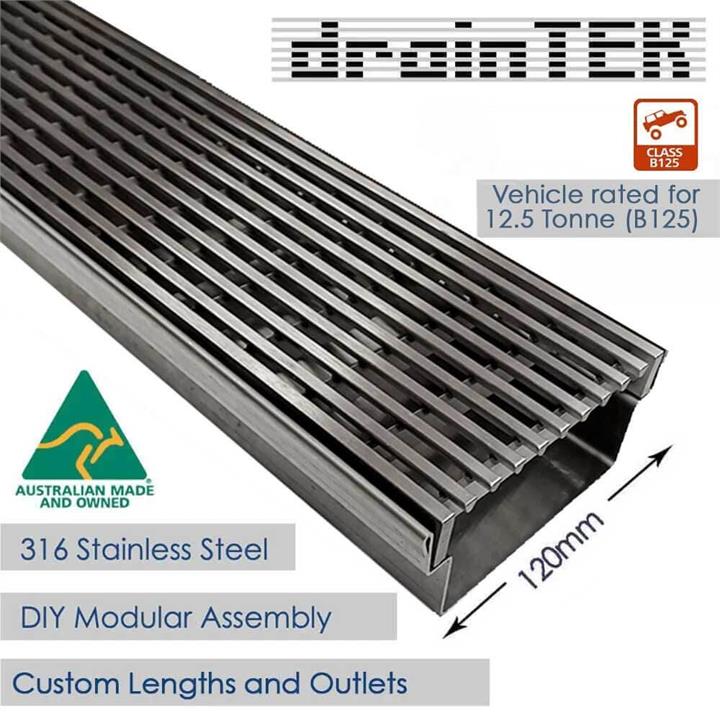

Outdoor Heavy Vehicle Rated Drainage Channel – Tray and Grate – Wedge Wire / Heel Guard Style – 120mm Wide

The quoted price is made up of: · The base manufacturing charge of $49.95. · A charge of $0.35 for each mm of length (Enter the length in mm where prompted below). This heavy duty linear outdoor channel drain is all 316L (low carbon) stainless steel – no plastic parts. Simply enter your required length in mm and the required position of the outlet(s) and it will be made to order and supplied in parts as per the installation information. Full marine grade 316L (low carbon) stainless steel for premium corrosion resistance (suits coastal regions) B125 heavy vehicle rated to bear heavy traffic Sleek brushed stainless steel wedge wire grates provide a modern architectural look Perfect architectural styling for premium installations Heavy Duty Wedge Wide Grate Top Fully welded high load bearing wedge wire insert – 5mm wedge wires and 5mm gaps for a uniform look 5mm x 20mm side walls for superior strength Separate lengths are butted against each other for a seamless look If multiple wedgewire inserts are required they will be custom cut to equal lengths Drainage Tray 1.2mm thick stainless steel for heavy duty durability 51mm deep stepped tray for efficient water drainage Simple modular components and assembly allows for DIY installation Stainless steel joiner plates and end caps easy to assemble with supplied 316SS fixings or a suitable silicone adhesive Premium Specifications Composition: Full 316L (low carbon) Marine Grade Stainless Steel Vehicle rating: B125 providing for vehicles up to 12.5 tonne Tray: 1.2mm thick steel. 120mm wide. 51mm deep Grate insert: Fully welded. Heavy duty 5mm x 20mm side walls and 5mm wedge wires with 5mm gaps. Grate design: Wedgewire design. Also known as “Heel Guard” design as it is suitable for high heels Joiner plate and end cap: Full 316L (low carbon) stainless steel Fixing bolts: Full 316L (low carbon) stainless steel Optional outlet(s): 50mm diameter to suit 50mm diameter (or greater) drainage plumbing Warranty: Lifetime warranty against manufacturing defects Length: Made to customer ordered length. Supplied in modulels up to 3000mm Corners: drainTEK can supply corner modules – simply contact us to discuss Made to order in Australia
