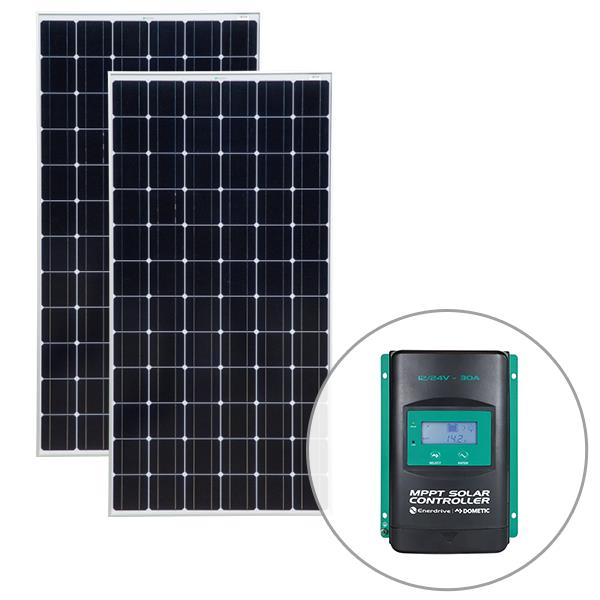

Enerdrive 2 x 200W 24V Fixed Solar Panel, Twin Pack

Enerdrive 2 x 200W 24V Fixed Solar Panel, Twin Pack, 5 Year Warranty. Enerdrives 200W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels). PLEASE NOTE: SP-EN200W-24 are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used. A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included. Key Features: High Conversion Efficiency . Module efficiency up to 15.67% achieved through advanced cell technology and manufacturing capabilities. Positive Tolerance . Positive tolerance of up to -1%+~3% delivers higher output reliability. High PID Resistant . Advanced cell technology and qualified materials lead to high PID resistant. Current Sorting Process . System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage. Extended Wind and Snow . Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal). Withstanding Harsh Environment . Reliable quality leads to a better sustainability even in harsh environments in the outdoors. Specifications: Max Power Pm(W) 200 Power Tolerance -1% ~ + 3% Max Power Voltage Vm(V) 37.3 Max Power Current Im(A) 5.37 Open Circuit Voltage Voc(V) 43.7 Short Circuit Current Isc(A) 6.05 Max System Voltage (VDC) 1000 Weight (kg): 15 Test Conditions 1000W/m² , AM1.5 , 25°C To choose a Solar Charge Controller for your Enerdrive Solar Panel, click here .
